Oil leakage is often treated as a simple seal problem. In practice, industrial gearbox oil leaks may indicate excessive housing pressure, incorrect lubricant level, shaft misalignment, abnormal bearing movement, poor heat dissipation, or unsuitable installation.
Replacing an oil seal without correcting the root cause may provide only temporary relief. Effective industrial gearbox leak prevention requires attention to lubricant flow, housing pressure, shaft movement, temperature, mounting position, and external loads.
Why Do Industrial Gearboxes Leak Oil?
Worn Shaft Seals and Damaged Shaft Contact Surfaces
An oil seal is all about a controlled contact between the lip of the seal and the shaft that the seal is rotating against. A variety of factors can affect the performance of the oil seal, such as heat, contamination, lack of lubrication, seal aging, and incorrect seal installation, all of which can cause damage to the seal lip, leading to oil leakage along the shaft.
Dings, corrosion, scratches, excessive runout, and increased clearance of bearings can also prevent a new oil seal from functioning. In order to solve oil seal failures of industrial gearboxes, the failure of the oil seal has to be checked against the failure of the respective shaft surface for the new seal.
Excess Oil, Blocked Breathers, and Internal Pressure Buildup
Expansion of air present in the gearbox takes place due to an increase in temperature. There is a breather that relieves such pressure.
In case of clogging of gearbox breather, pressure might cause lubrication oil leakage through shaft seals, cover plate, joints of gearbox housing, or oil level ports. Overfilling leads to the same situation because of the agitation of extra oil by rotating gears.
The right gearbox oil level is a designed level in a particular mounting position, not the maximum housing capacity.
Loose Housing Joints, Drain Plugs, and Lubrication Lines
Static leakage may occur at housing joints, end covers, inspection openings, drain plugs, level indicators, or external lubrication lines.
Typical causes include loose fasteners, damaged gaskets, contaminated mating surfaces, deteriorated sealant, distorted covers, and poorly tightened fittings. Identifying whether leakage is dynamic or static helps avoid unnecessary oil-seal replacement.
Misalignment, Vibration, and Excessive Gearbox Temperature
Shaft movement caused by misalignment and poor mounting is further aggravated by wear of the seal and bearings. High temperature operation reduces the lubricating oil viscosity and causes the seal materials to harden.
In cases where oil leakage from a gearbox is accompanied by other phenomena such as vibration, bearing noise, or increased heat, then the leakage is merely a symptom of a larger mechanical problem.
How Can You Identify the Source of an Industrial Gearbox Oil Leak?
Clean the Gearbox Before Tracing the Active Leak Path
Oil can travel across the housing through gravity, airflow, and vibration. Before beginning a gearbox leak inspection, clean the housing, shaft ends, covers, breather, and pipe connections.
Operate the unit under controlled conditions and observe where fresh oil first appears. The lowest wet point is not always the original source.
Inspect Dynamic and Static Gearbox Sealing Points
Use a consistent inspection sequence:
- Input and output shaft seals
- Bearing and end covers
- Housing joint surfaces
- Breather and filling points
- Oil-level indicator and drain plug
- External pipes, filters, pumps, and coolers
Shaft seal leakage can be distinguished from pressure, joint, and lubrication system faults by this test.
Check Oil Level, Breather Condition, Temperature, and Vibration
Evaluate the leak together with its operating symptoms.
| Leakage pattern | Possible cause | Recommended inspection |
| Oil around a shaft end | Seal wear, shaft damage, runout | Check the seal, shaft, bearings, and alignment |
| Oil around the breather | Overfilling or blocked ventilation | Verify oil level and breather condition |
| Oil along a housing joint | Loose fasteners or gasket damage | Inspect torque and mating surfaces |
| Leakage with high temperature | Wrong viscosity or poor cooling | Check lubricant, load, and cooling |
| Leakage with vibration | Misalignment or bearing wear | Check coupling, bearings, and foundation |
The visible leak point will indicate where the oil leaked out, but will not necessarily identify why the leak occurred due to increased pressure, temperature, or motion.
How Do Lubrication and Pressure Control Prevent Gearbox Oil Leaks?
Use the Correct Gear Oil Viscosity and Fill Level
Lubricant viscosity must match operating temperature, speed, load, and lubrication arrangement. Oil that is too thin passes through sealing clearances more easily, while excessively thick oil can increase churning losses and startup heat.
Check the level while the gearbox is stopped and follow the instructions for its mounting orientation. Horizontal and vertical installations may require different oil quantities and indicator positions.
Keep Gearbox Breathers and Oil Return Paths Clear
Keep breathers free of dust, sludge, paint, and hardened oil. Increase the frequency of inspection in very dirty operating environments.
Internal oil-return passages are as important as internal oil-drain passages. Lubricant must be directed away from the seal area to prevent it from building up behind the seal lip and thus creating localized pressure.
Control Lubricant Temperature with the Appropriate Cooling Method
Persistent high oil temperature should not be corrected by simply adding lubricant. The correct response is to determine whether heat generation exceeds the gearbox’s thermal capacity.

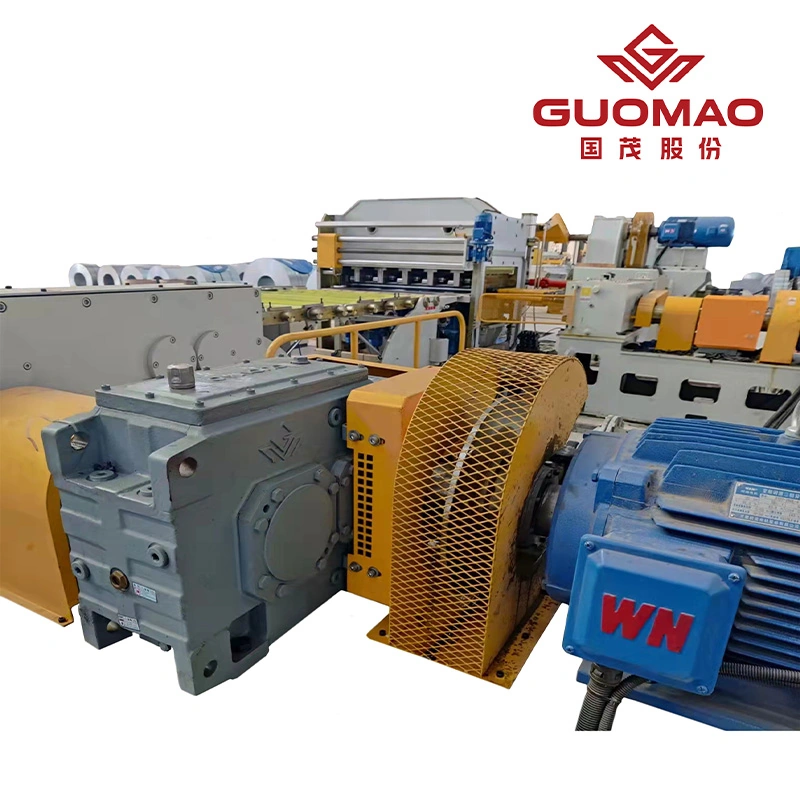

Industrial gearboxes at Guomao can be provided with a fan, external oil-circulation, air cooler, etc., and a sealing arrangement to best fit the application. H-Parallel Industrial Gearbox and B-Vertical Industrial Gearbox are commonly used types in such applications.
Both product lines cover power ratings from 4 to 6,000 kW, ratios from 1.25 to 450, and maximum output torque up to 950 kN·m. Grade 6 gear accuracy, controlled assembly, and standards-based helical and bevel gear calculations support stable meshing. Reduced vibration and controlled heat generation are important for reliable industrial gearbox sealing.
How Do Installation and Sealing Practices Prevent Repeat Leakage?
Match Oil Level and Breather Position to the Mounting Arrangement
Mounting orientation affects the oil pool, bearing lubrication, splash distribution, return paths, breather position, and pressure at the shaft seals.
The H-Parallel Industrial Gearbox uses parallel input and output shafts, while our B-Vertical Industrial Gearbox has a 90-degree shaft arrangement. Both support horizontal or vertical installation in suitable configurations.
Maintain Shaft Alignment, Foundation Stability, and Radial Load Control
An industrial gearbox should be installed on a flat, rigid, and stable foundation. Uneven support can distort the housing and disturb seal or bearing alignment.
The motor, coupling, and gearbox shafts must remain within permitted alignment tolerances. Pulleys, sprockets, belt drives, and external gears may add radial loads that must be checked during selection.
Poor alignment may cause:
- Uneven seal contact
- Shaft and bearing wear
- Higher vibration and temperature
- Repeat leakage after seal replacement
Install Oil Seals, Gaskets, and Fasteners Correctly
Even new seals can be damaged. Sharp keyway, dirty shaft, dry sealing lip, or wrong installation tool are common causes for damage. Seals always have to be installed lip side towards the oil and have to enter the housing at a straight angle.
Prior to seal installation, remove any old gasket material and examine both surfaces. Follow the recommended fastener tightening sequence. Recommended torque should be adhered to. External sealant should not be used to cover up mechanical problems.
What Preventive Maintenance Stops Small Leaks from Becoming Failures?
Build a Routine Industrial Gearbox Inspection Checklist
A practical industrial gearbox maintenance checklist should cover:
- Shaft seals and housing joints
- Breather and oil level
- Drain plugs and lubrication lines
- Foundation bolts and coupling alignment
- Lubricant appearance
- Temperature, noise, and vibration
Gradual changes, such as a growing oil stain or rising bearing temperature, can often indicate a developing problem before major leakage occurs.
Decide When to Repair, Reseal, or Stop the Gearbox
Minor static leaks are usually fixed by tightening up the joint or replacing the gasket. Shaft leakage could require seal replacement, shaft repair, bearing adjustment, or even alignment correction.
Leaks leading to rapid oil loss, unusual noise, excessive temperature, severe vibration, low lubrication pressure, visible shaft movement, or suspicion of housing damage must be stopped by switching off the gearbox.
FAQ
Q: What are the most common causes of industrial gearbox oil leaks?
A: Causes of Oil leakage from a gearbox are: Worn seals, Damaged shaft surface, Excessive oil, blocked breathers, Loose housing joints, Poor oil return, Wrong oil viscosity, Shaft misalignment, worn-out bearings, and high temperature.
Q: How can industrial gearbox oil leaks be stopped without replacing the seal?
A: Check oil level, breather, temperature, end play, fasteners, and lubrication lines. Overfill, pressure, excessive oil leakage due to vibration or loose fittings can be repaired without replacing the seal if found to be serviceable.
Q: Can overfilling cause industrial gearbox oil leakage?
A: Yes. Too much lubricant causes excessive churning, aeration, splash, heat, and pressure in the housing. The lubricant will leak out through the seals, breathers, covers, etc. of the housing.
Q: How often should an industrial gearbox leak inspection be performed?
A: Visual inspection should be included in routine operating checks. Applications of continuous-duty, high-load, dusty, hot, or critical in nature require more frequent inspection.
