What Makes Helical Bevel Gear Units Ideal for Power Transmission?
The Design Features That Enhance Performance

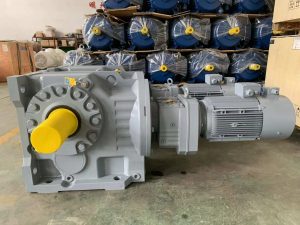

Helical bevel gear units are custom-made to cater to the requirements of dependable power transfer systems. They usually come with designs that support various setups and uses. The GR series Helical Geared Motors provide a mix of two-stage and three-stage helical gears with bevel gears for flexible performance. Their small dimensions and robust cast iron bodies make them stronger and more able to withstand radial loads. Besides, the precise production of gears with gas carburizing processes maximizes their load-bearing capacity while not taking much space.
These gearboxes are unique because of their ability to reduce noise in the form of precise assembly and machining, along with high efficiency. Moreover, their versatility is illustrated in the form of the variety of mounting orientations that they come in such as the foot mount and flange mount types. This makes them capable of being used in any type of application ranging from conveyor systems to lift equipment.
The Role of Precision Engineering in Efficiency

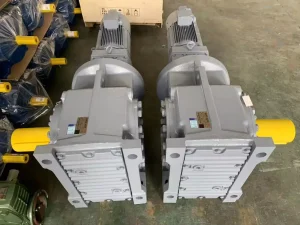

Precision engineering is the cornerstone of the functionality of helical bevel gear units because it entails the integration of helical and bevel gears for the sake of providing smooth running along with efficient transmission of torque. Helical-bevel geared motors, for instance, the GK series Helical-Bevel Geared Motor, employ two-stage helical gears and single-stage bevel gears for the purposes of facilitating efficiency. High-level grinding processes are employed for the purposes of facilitating grade 6 tooth precision for both gears, thereby enhancing their smoothness.
Apart from this, they are also provided with heat treatment processes that harden them and extend their lifespan. In normal operational conditions, with appropriate maintenance, the main elements can be made to last more than 25,000 hours. The extended lifespan minimizes disruption and maintenance cost, hence being a cost-effective industrial solution.
How Do Helical Bevel Gear Units Improve Energy Efficiency?
Reducing Energy Loss During Operation
One of the unique features of helical bevel gear units is their very high transmission efficiency, exceeding 95%. Such high efficiency minimizes energy loss, outperforming other gear systems due to their design and construction, which reduce friction between components.
Furthermore, these devices come equipped with lubrication systems that guarantee steady operation even in changing environments. The efficient dispersal of heat while in use also aids in saving energy by avoiding the strain and wear of parts.
Enhancing Torque Transfer with Advanced Gear Alignment
Helical bevel gear units are designed to enhance torque transfer by combining helical and bevel gears, ensuring smooth power transmission even under heavy loads, minimizing mechanical losses, and directing more energy toward the intended purpose.
These units are well built to handle torque outputs effectively while maintaining stability and efficiency intact. This makes them ideal for demanding industrial applications, such as controlling bucket conveyors or winches.
Why Are Helical Bevel Gear Units Known for Durability and Reliability?
Materials and Manufacturing Processes That Ensure Longevity
Helical bevel gear units have gained a reputation for excellent durability and reliability, owing to the high-quality material and better production methods used while manufacturing their whole production process. A traditional example includes the usage of high-grade cast iron on unit cases. Besides bearing well against loads, it also provides good resistance against wear and tear. The rugged construction makes sure that these gear units are able to withstand harsh environments while maintaining top-grade performance standards.
The gears go through gas carburizing processes. They are then finely ground for optimal hardness and precision purposes. This complex process improves the gears’ torque load resistance while offering smooth operation. Furthermore, advanced heat treatment processes are used to enhance resistance to fatigue, greatly increasing the life of these parts.
Minimizing Wear and Tear Through Optimized Load Distribution
One important factor that renders helical bevel gear units reliable is their ability to distribute loads in an even manner between the teeth of the gears. Helical bevel gears offer smooth meshing which lessens areas of stress, which could contribute to early wear and tear. Enhanced load distribution not only reduces mechanical inefficiencies but also boosts the general efficiency of the systems.
In addition, these units have lubrication systems that minimize the friction among moving components. Efficient dissipation of heat during operation prevents overheating and protects the components from wear and tear. These advantages make helical bevel gear units the unit of choice for applications that require reliability and less downtime.
What Are the Applications of Helical Bevel Gear Units in Industrial Settings?

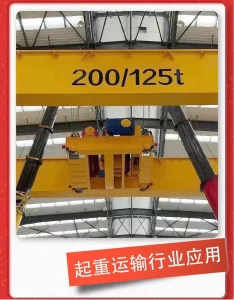

Helical bevel gear units are widely applied in industries due to their reliability and smooth operation. They are normally employed in hoisting machinery, for example, slewing mechanisms and hoisting mechanisms, due to their capability to absorb radial loads effectively for hard work in such industries.
Equipment often utilizes helical bevel gear units in numerous applications, including winches and bucket conveyors, due to their small size and high transmission capability that easily accommodates these systems for smooth movement. These gear units are also beneficial in industries like energy equipment and homogenizing systems where they provide smooth operation of slurry conveying systems and glue machine setups.
Why Choose Guomao’s Helical Bevel Gear Unit?
Advanced Manufacturing Techniques at Guomao
Guomao’s manufacturing process for helical bevel gear units is all about innovation and accuracy to manufacture high-quality products with the capability to endure huge loads easily due to their heavy-duty cast iron housings and specially treated gears for performance and strength. The precise construction process makes sure that the accuracy levels, which not only maximize the efficiency of the gear components but also help in reducing noise levels accordingly. Because each unit is thoroughly tested to satisfy strict quality standards, it offers long life and reliability.
High-Precision Components for Optimal Performance
Guomao’s dedication to excellence is showcased through the high-quality components incorporated into our helical bevel gear units. The GR series Helical Geared Motors are a perfect example of this commitment through their use of one-stage or two-stage helical gears with bevel gears to facilitate easy power transfer and efficient torque transmission.
Should you require support for conveyor system specifications or lifting equipment requirements, we offer versatility and reliability. Opt for Guomao to get products designed for performance in various industrial environments.
Frequently Asked Questions about Helical Bevel Gear Unit
Q: What is a bevel helical gear?
A: Helical bevel gearboxes are angular gearboxes where the gear unit’s output shaft turns 90 degrees around the motor’s rotor shaft. Hollow and solid shafts are common.
Q: What is a bevel gear with helical teeth called?
A: A spiral bevel gear is a helical bevel gear. Its main application is in a car differential, where drive rotation from the drive shaft must be turned 90 degrees to propel the wheels.
Q: What are the cons of helical gears?
A: Helical gears are costlier to produce compared to spur gears. Helical gears generate a lot of thrust force due to the helix angle that must be supported by the use of thrust bearings to counter and bear the force.
Q: What is the difference between worm gear and helical bevel?
A: A worm gearbox can prove to be a better option in low HP applications because it is extremely economical. A helical gearbox is generally a better option in cases where increased torque is required. Helical gearboxes are more efficient compared to worm gearboxes.
